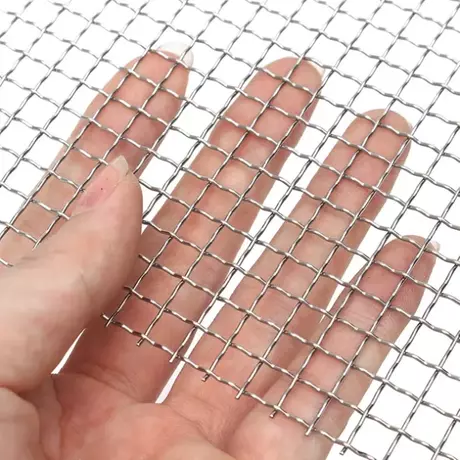

Product Description
1. Material: Ss wire, high carbon steel
2. Weaving type: Plain, intermediate, crimped
3. Wire diameter: 0.05-22mm
4. Used in industry
Material: Stainless steel wire, high carbon steel, carbon steel, nickel steel and nonferrous wire.
Process: Made with pre-crimped wire in the method of locked crimp, double plain weave, single wave weave, double plain weave, double crimp, space weave.
Specification
| Mesh/Inch | Wire Diameter(mm) | Aperture(mm) | Weight(kg/m2) |
| 1mesh | 4.06 | 21.34 | 8.24 |
| 1mesh | 3.25 | 22.15 | 5.5 |
| 1mesh | 2.64 | 22.76 | 3.5 |
| 1.5mesh | 2.34 | 14.6 | 4.11 |
| 2mesh | 2.64 | 10.06 | 8.98 |
| 2mesh | 2.34 | 10.36 | 5.48 |
| 2mesh | 1.63 | 11.07 | 2.62 |
| 3mesh | 2.64 | 5.67 | 11.5 |
| 3mesh | 2.2 | 6.27 | 7 |
| 3mesh | 1.63 | 6.84 | 4 |
| 4mesh | 2.64 | 3.55 | 14.5 |
| 4mesh | 2.2 | 4.15 | 9 |
| 4mesh | 1.63 | 4.72 | 5 |
| 5mesh | 1.63 | 3.45 | 7 |
| 5mesh | 1.22 | 3.89 | 4 |
| 6mesh | 1.22 | 3.04 | 4.5 |
| 6mesh | 0.91 | 3.31 | 2.6 |
| 7mesh | 1.22 | 2.47 | 5.6 |
| 8mesh | 1.22 | 1.95 | 6 |
| 8mesh | 0.91 | 2.26 | 3.3 |
| 8mesh | 0.81 | 2.36 | 2.6 |
| 10mesh | 0.91 | 1.63 | 4.2 |
| 10mesh | 0.81 | 2.16 | 3.3 |
| 12mesh | 0.71 | 1.41 | 3.1 |
| 14mesh | 0.56 | 1.25 | 2.2 |
| 16mesh | 0.46 | 1.03 | 1.8 |
| 18mesh | 0.46 | 0.95 | 2 |
The tables above shows the standard grades and specifications available for WEIYUE's Crimped Wire Mesh
Crimping Styles
Crimped Wire Mesh is made through crimping mesh machine with pre-crimped wire in the following styles listed. Square or rectangular openings available due to the different crimping styles.
Two-way separated weave crimping:
Locked crimping;
Flat-topped crimping;
Two way crimping;
One-way separated wave crimping
Crimped Mesh Sides Style
The edge sides of crimped wire mesh has 5 styles as follow: Cut edge, Edge folded 180°, Edge reinforced with PUR-foil , Reinforcement with PUR-foil, Rubber- or silicon lip sealing.
Crimped Wire Mesh Features:
1)High tension: Much higher tension than common polyester mesh and smooth tension;
2)Super precision: Uniform wire diameter and aperture with extremely low difference;
3)Low elongation: Very small elongation of wire mesh at high tension;
4)High flexibility: The wire mesh will not lose elasticity at extreme tension;
5)High corrosion resistance: The excellent corrosion resistance of stainless steel wire exceeds polyester fiber;screen.
Product Application
Crimped mesh is widely used in mining, petroleum, chemical, construction, mechanical accessories, protective netting, packaging netting, barbecue netting, vibration screen, cooking utensils, can also be used for classification of solid materials screening, liquid and slurry filtration, aquaculture, civil and so on.
Crimped Wire Mesh For Mining
| Materila | Stainless steel wire,high carbon steel wire,low carbon steel wire,galvanized iron wire,galanized steel wire,non-ferrous metal wire. |
| Stainless steel wire types | 302 304 304L 310 316 316L |
| Features | High temperature resisting,acid resisting,alkali resisting,corrosion resisting. |
| Processing method | Locked weave, Bi-directional plain weave, single wave weave, two-way wave weaving, rectangular opening weaving. |
| Uses | Crimped mesh is widely used in mining, petroleum, chemical, construction, mechanical accessories, protective netting, packaging netting, barbecue netting, vibration screen, cooking utensils, can also be used for classification of solid materials screening, liquid and slurry filtration, aquaculture, civil and so on. |
Pre-Crimped Barbecue Grill Netting
| Barbecue Grill Netting is made of pre-crimped wire mesh, with the surface treatment of zinc coated or chrome plated. | |
| Specification available of barbecue grill wire netting | 110mm × 110mm / 150 × 150 / 210 × 270 / 220 × 220 / 220 × 300 / 450 × 300 |
| Materila | Crimped iron wire netting. |
| Finish | Zinc coated or chromium plated. |
| Characteristics | Bright color, good structure, export standard. |
Required parameter
a: Material
b: Wire Diameter
c: Mesh
d: Width
e: Length
Packaging & Transport
Company Profile
Why choose Weiyue?
1) OEM available;
2) 8 years production experience make us more professional in the Wire Mesh fields;
3) 6 machines for manufacturing, faster production and short delivery time;
4) Pass the ISO9001 Certificate, high quality could make all clients rest assured.
Our team:
1) Reply your enquiry within 24 working hours
2) Customer order available, OEM and ODM are welcomed;
3) All the goods are inspected by professional QC before delivery;
4) Shipping the goods to our customers all over the world quickly and precisely;
5) Good after sales service, any product issues can be handled promptly;
6) Professional & Integrity, your faithful and long-term partner.
Your enquiry and visit would be welcomed very much!
We can customize it according to your application and needs!
